Trapezoidal Panel Roll Forming Machine Features:
Different Trapezoidal panel roll forming machine can produce different shapes of steel trapezoidal sheets according to the client’s profile drawings and requirements. The steel trapezoidal sheets are new building materials with various thickness and colors.
Applications
The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
Process Flow
Uncoiler — feeding— roll forming— cutting — output
Machine Configurations
| 1. Uncoiler |
2. Guide feeder
|
| 3. roll former |
4. Hydraulic cutting unit
|
| 5. PLC Control System |
6. Hydraulic station
|
| 7. Output conveyor |
Photos For Reference
-

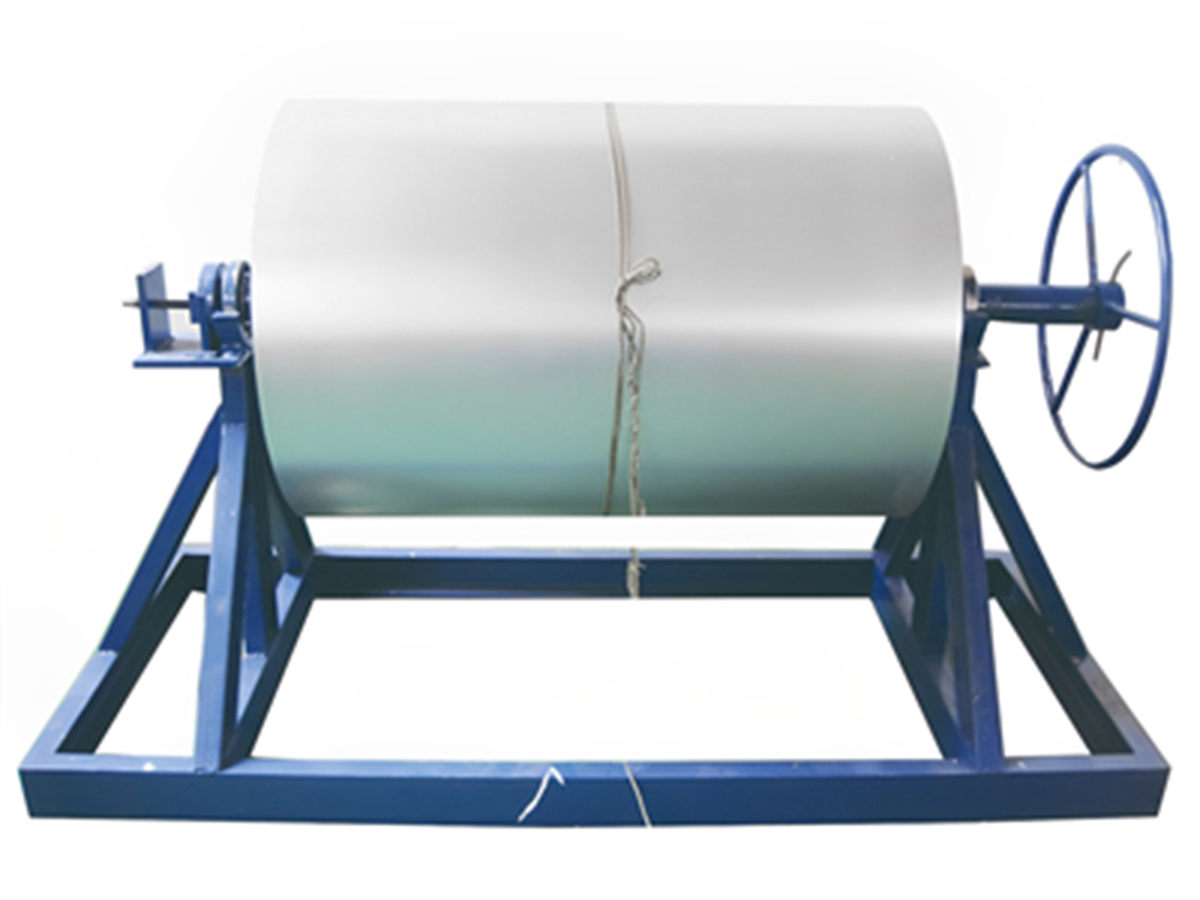

10T manual decoiler
-

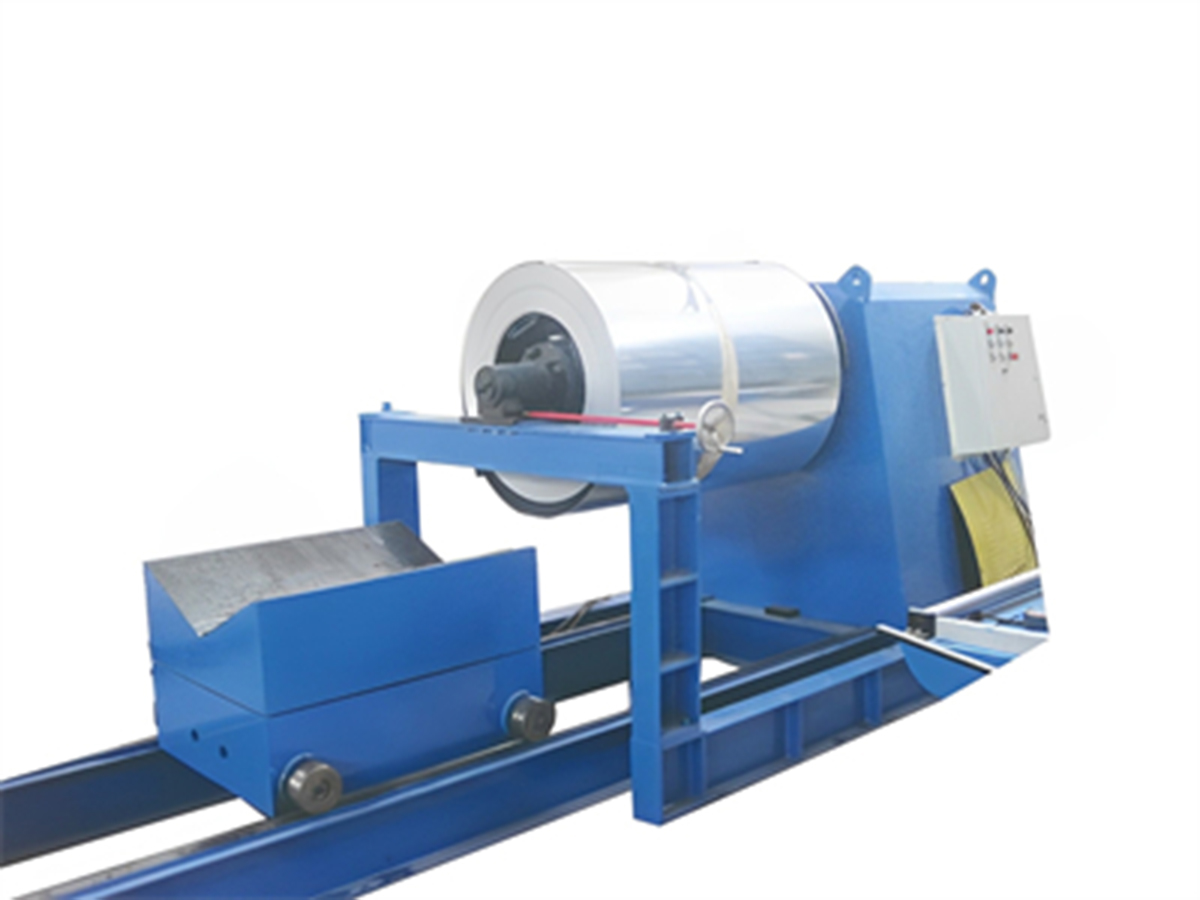

10T Hydraulic decoiler
-

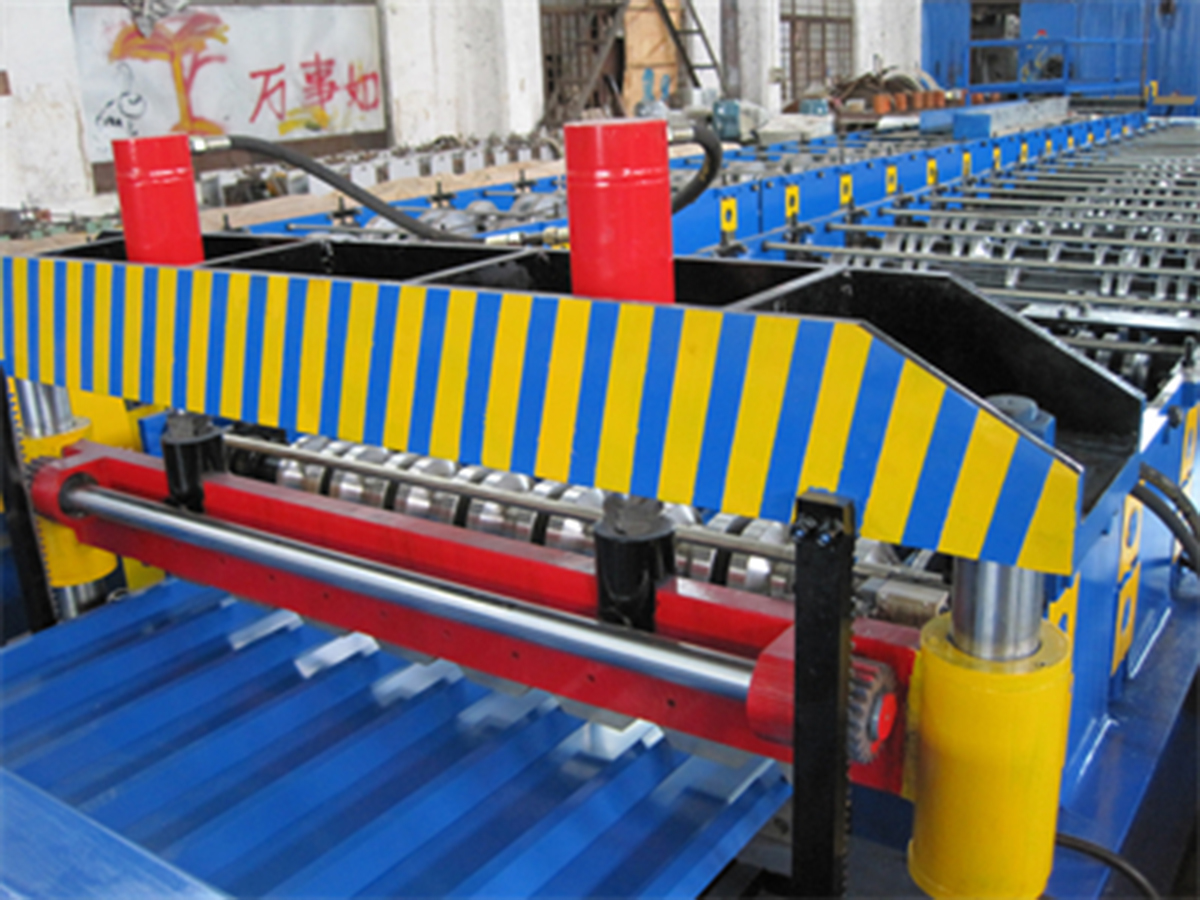

Roll Forming Machine
-
Hydraulic cutting unit
-

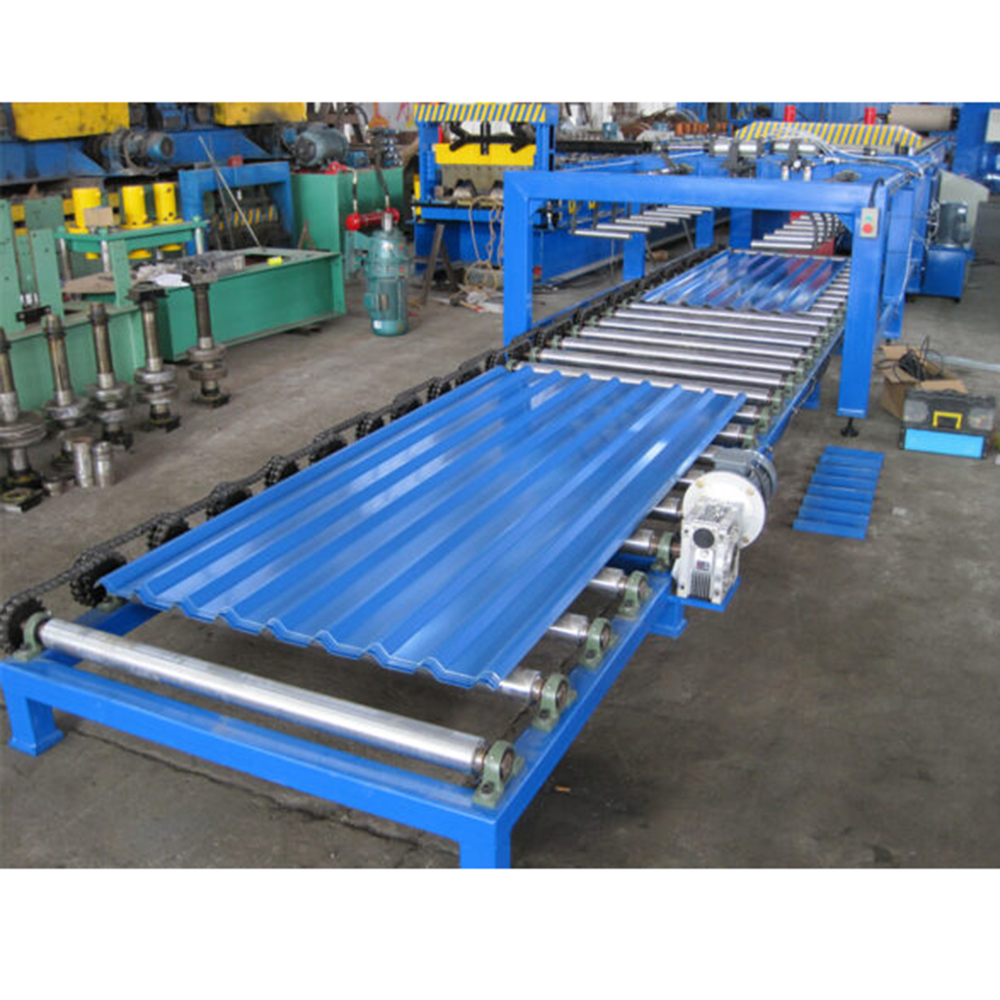

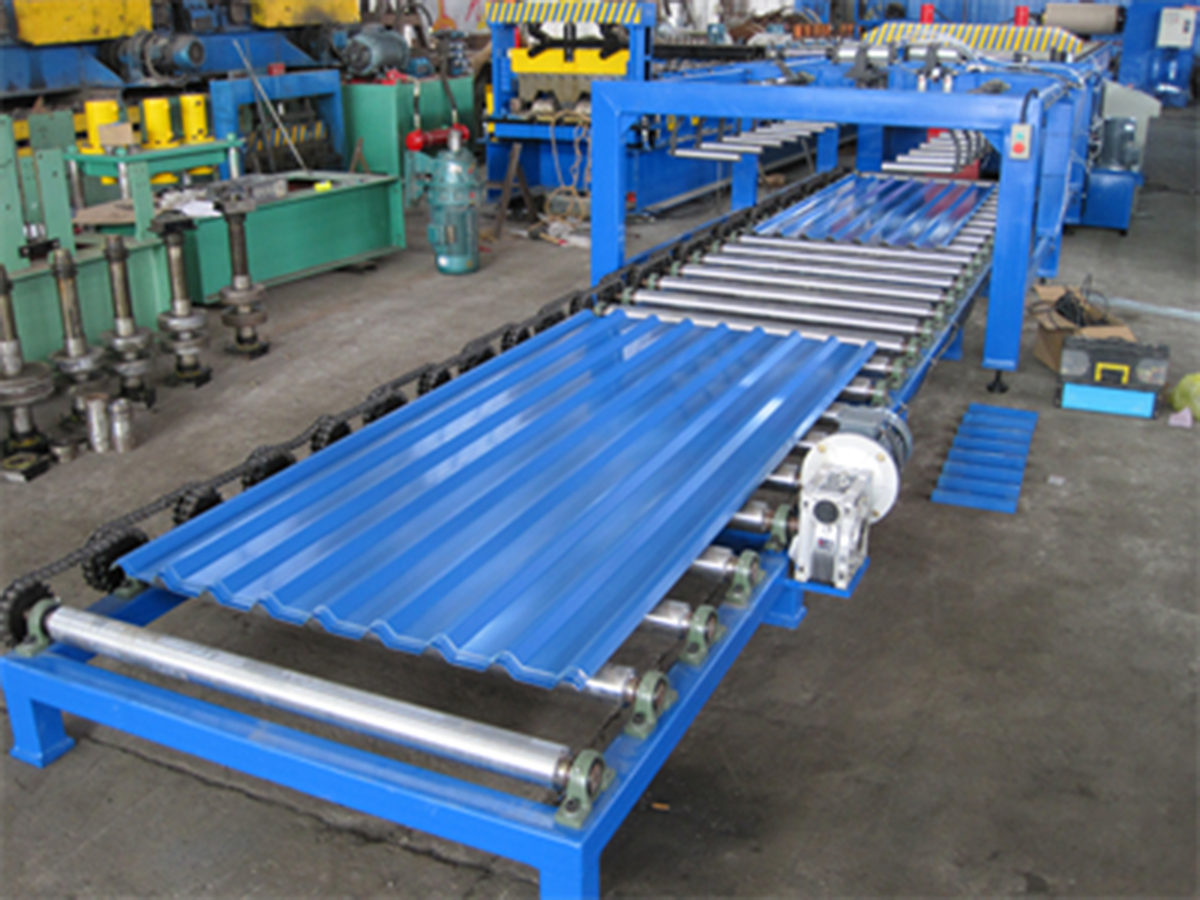

Auto stacker (Option)
