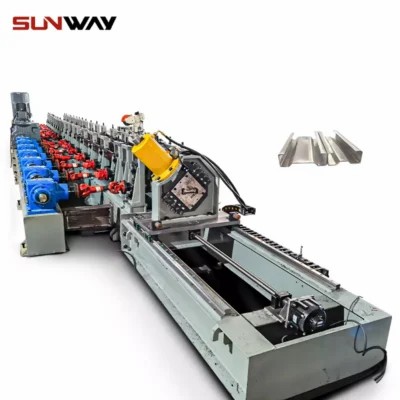

Din Rail Making Machine

Jan 25, 2024

Din rail making machines are specialized equipment used to automatically manufacture DIN standard rails for mounting industrial control equipment. This guide provides a comprehensive overview of din rail making machine technology.

How Does a Din Rail Making Machine Work?

Din rail production lines utilize a roll forming process to transform strip steel coil into formed DIN rail pieces. The key aspects of the working process are:

•Uncoiling – Sheet steel coil is loaded onto an uncoiler which feeds the strip through the line
•Forming – The metal strip passes through a series of roller dies which progressively form it into the desired DIN rail shape through bending and folding
•Cutting – Formed rails are cut to specified lengths by a cutting machine
•Hole Punching – Mounting holes are punched in the rails as needed
•Marking – Printed markings and labels can be applied
•Packaging – An exit conveyor stacks and packages completed DIN rail pieces

Modern din rail lines include various inline processes like cleaning, straightening, degreasing along with automation features to enable high efficiency production.

Types of Din Rail Making Machines

There are two primary types of din rail manufacturing equipment:

Machine Type	Description
Manual Lines	Basic machines with separate uncoiling, forming, cutting, and packaging units controlled individually. Lower output but flexible and economical.
Automatic Lines	Fully integrated production lines with automated coil loading, forming, sensing, and packaging. Higher output rates but specialized for high volume manufacturing.

Key Components of a Din Rail Production Line

The major components and modules in a DIN rail machine are:

•Uncoiler/Decoiler – Feeds strip steel coil stock
•Feeder/Straightener – Aligns strip stock and feeds into forming section
•Forming Stations – Progressive roller dies shape metal into rail form
•Cutting Machine – Shears formed rails to length
•Hole Punch – Punches mounting holes into rail pieces
•Inspection Unit – Checks quality standards of rails
•Printing/Marking – Applies logos, labels identification markings
•Packing Unit – Stacks and bundles output pieces

Programmable automation controllers allow monitoring and coordination of all line components.

Choosing a Din Rail Making Machine Supplier

When selecting a DIN rail production line, key factors to consider in suppliers are:

Parameter	Description
Production Output	Match line output to manufacturing scale (small, medium, large scale)
Rail Specifications	Ensure machine can produce needed rail dimensions and hole patterns
Customization Options	Availability of customized marking, sensing, automation features
Quality Certification	ISO certified manufacturing processes for quality assurance
Automation Level	Degree of manual versus automatic material handling and processes
Aftersales Service	Installation support, operator training, maintenance and parts supply
Pricing	Compare budget estimates across suppliers

Leading global manufacturers of din rail making equipment include:

•Máquinas Ramirez
•Euromac
•EAE Tools

Reputable suppliers provide production guarantee and ensure dimensional accuracy of output rails.

Auto Size Changeable Sigma Purlin Roll Forming Mach
Electrical Cabinet Frame Roll Forming Machine
Auto Size Changeable C Z Purlin Roll Forming Machine
Auto Size Changeable Z Purlin Roll Forming Machine
Auto Size Changeable C U Purlin Roll Forming Machine
C Section Bracing Omega Storage Rack Upright Post Roll Forming Machine
Steel Box Plate Making Roll Forming Machine
Box Beam Steel Roll Forming Machine For Shelf Column
Pallet Racking Step Beam P Beam Roll Forming Machine

Advantages of Automated Din Rail Production Lines

Modern high speed automated din rail making machines offer various benefits:

Higher Productivity

•Produce up to 120 m/min allowing large volume manufacturing
•Automated coil handling improves efficiency

Improved Consistency

•Programmable forming parameters ensures uniform rail geometry
•Automatic sensing checks quality standards

Flexible Production

•Quick roll die changeovers enables different rail types
•Simple size and length adjustments

Cost-Competitive

•Higher yields and lower labor due to automation
•Scales efficiently from small to large batch production

Overall, automated DIN rail lines enable efficient mass production while maintaining dimensional accuracy and customization flexibility.

Industrial Applications of DIN Rail

DIN rail is a mounting system used to install industrial control equipment, power distribution, and automation components in factories, infrastructure facilities, commercial complexes and utilities.

Typical application areas include:

•Manufacturing Industries – Factory assembly lines, CNC machines, robotic arms
•Process Industries – Power plants, refineries, waste water facilities
•Commercial Buildings – Offices, malls, hospitals, data centers
•Infrastructure – Metro rail systems, airports, cellular base stations

All these industries utilize specialized control gear, circuit protection devices, connectivity hardware mounted on DIN rail for monitoring, operating and optimizing systems.

FAQs

Q: What materials can be used to manufacture DIN rails?

A: Cold rolled low carbon steel strips with galvanized or stainless steel variants are commonly used.

Q: What international quality standards are followed for din rails?

A: DIN EN 60715 and IEC 60715 standards specify mechanical and dimensional requirements.

Q: What are the key operation parameters to set in a DIN rail line?

A: Forming speed, steel strip feed length, shear cut length, hole punch spacing, and hole diameter are the primary parameters.

Q: How to maintain forming rollers and tooling in a din rail machine?

A: Regular cleaning and replacing worn forming rollers preserves dimensional accuracy of produced DIN rails. Lubricating rollers reduces friction and tool wear.
